Sanitary isolation washing machine series

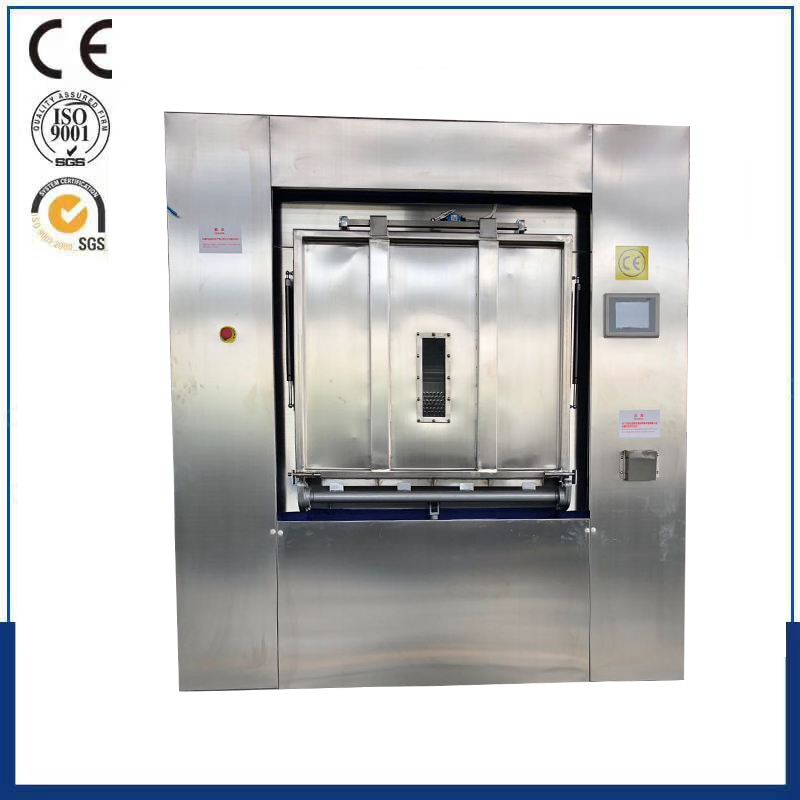

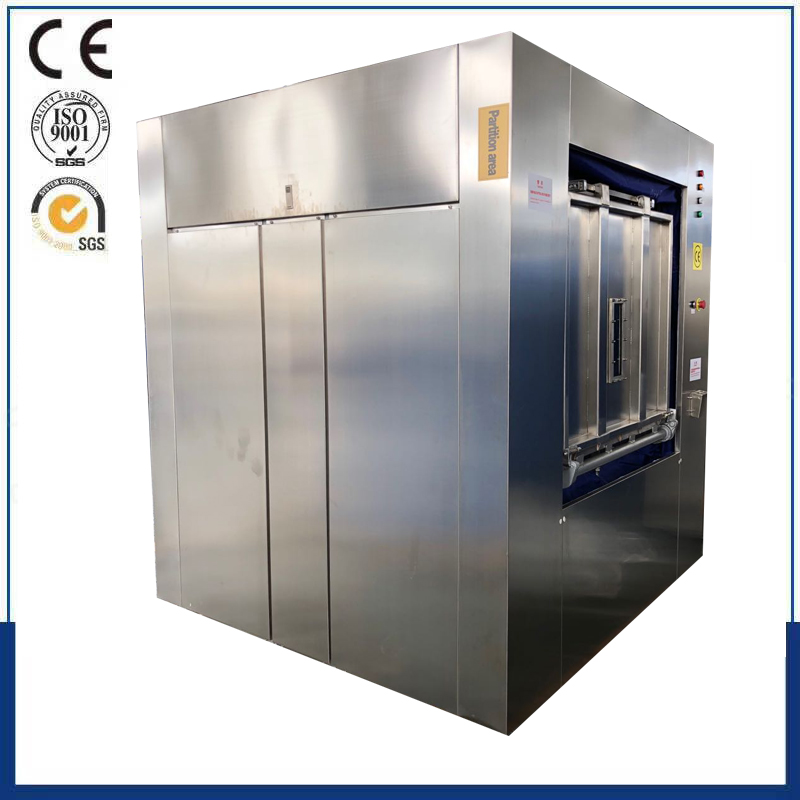

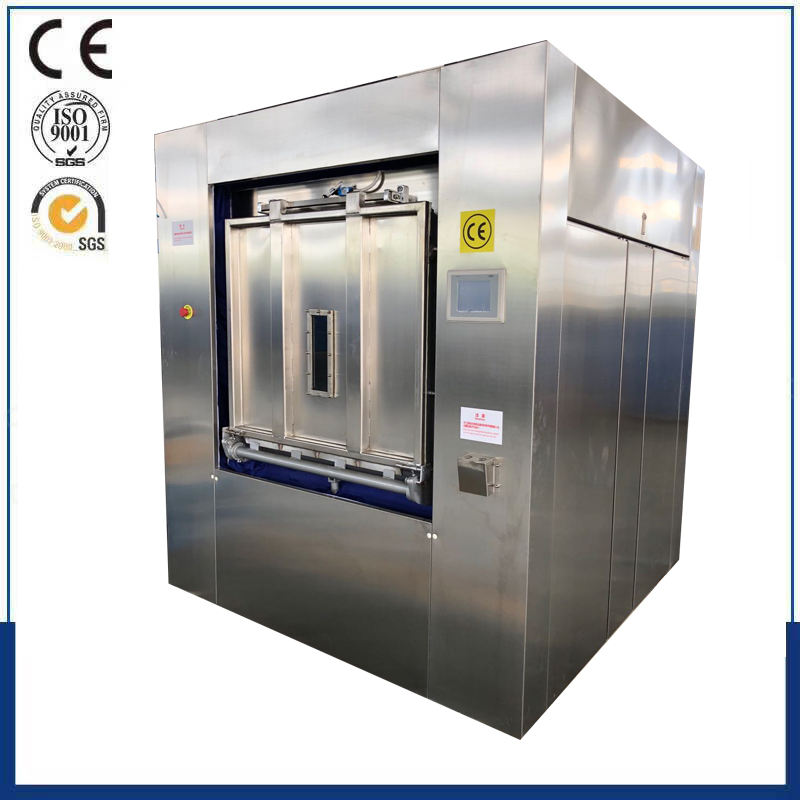

BW30Kg Sanitary Isolation Washing Machine

  • BW30Kg Sanitary Isolation Washing Machine
  • BW50Kg Sanitary Isolation Washing Machine
  • BW100Kg Sanitary Isolation Washing Machine

一、(Main Technical specifications)



TypeCompany

BW30

BW50

BW100


Rated capacity(Max.)kg

30

50

100


Liner Sizemm

φ800*600

φ900*800

φ1220*853


Power supplyv/P/HZ

380/3/50

380/3/50

380/3/50


Motor powerKw

4

5.5

7.5



Connection








Cold waterDN

1" ?

1" ?

2"


Hot waterDN

1" ?

1" ?

2"


SteamDN

3/4"

3/4"

1"


Overall Size








Widthmm

1380

1580

1860


Depthmm

1380

1580

1860



Heightmm

1700

1900

2165


2、 Product Introduction

The concept of sanitary isolation washing machine divides the laundry room into two independent operating areas: clean area and non clean area. The washing material is loaded into the machine door located on the side of the non clean area, and after washing, it is taken out from the machine door located on the side of the clean area. Preventing cross contamination of laundry products caused by loading and discharging from non clean areas is an ideal solution for dust-free industries and hospital laundry rooms.
